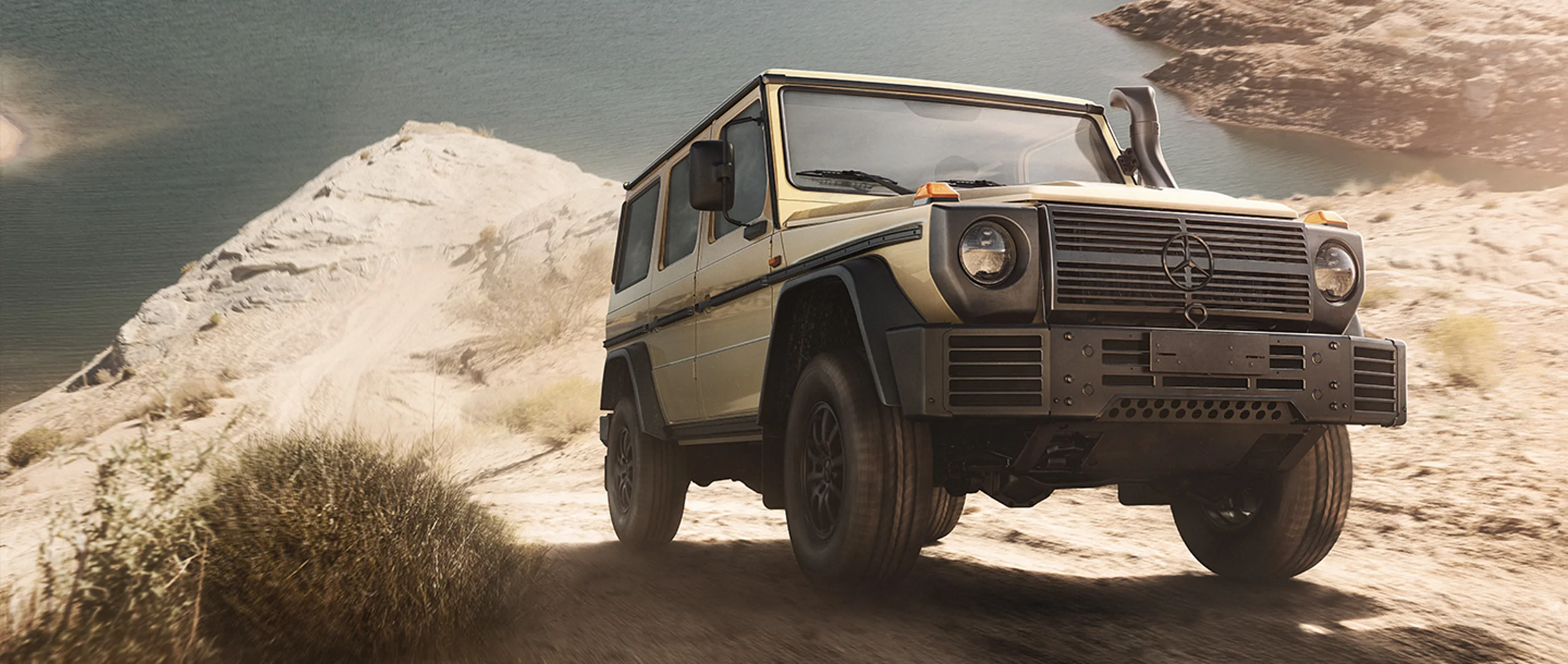

Mercedes-Benz G 350 d Station Wagon.

Mercedes-Benz G 350 d Station Wagon.

The Station Wagon offers the vehicle’s occupants a closed, five-door body with four seats. There is space in the rear for additional equipment and personal gear.

With a permissible gross weight of 3.5 tonnes, 1.0 tonne is available for payload. Of this, up to 200 kilograms can be carried on the roof. Additional payload can be transported with a 3.5-tonne trailer.

1/4

Technical data.

Motorisation

  • 2.925 ccm

    • Displacement

  • 600 Nm

    • Nominal torque (Nm) [1]

  • 183 kW (249 hp)

    • Nominal power in kW (hp) [1][2]

  • 6 / 4

    • Number of cylinders / number of valves per cylinder

[1] Figures on the nominal power and nominal torque was provided in accordance with Regulation (EEC) No. 715/2007 in the currently applicable version.

[2] Figures on unladen weight data in accordance with Council Directive 92/21/EEC in the currently applicable version (mass in roadworthy condition, fuel tank 90 % full, with driver, 68 kg, and luggage, 7 kg) for vehicles with standard equipment. Optional equipment and accessories usually increase this value, reducing the payload accordingly.

Power

  • 160 km/h /
    Optionally 120 km/h
    or 80 km/h

    • Maximum speed
  • 183 kW (249 hp)

    • Nominal power in kW (hp) [1][2]

[1] Figures on the nominal power and nominal torque was provided in accordance with Regulation (EEC) No. 715/2007 in the currently applicable version.

[2] Figures on unladen weight data in accordance with Council Directive 92/21/EEC in the currently applicable version (mass in roadworthy condition, fuel tank 90 % full, with driver, 68 kg, and luggage, 7 kg) for vehicles with standard equipment. Optional equipment and accessories usually increase this value, reducing the payload accordingly.

Dimensions

  • 4.841 mm

    • Vehicle length

  • 1.999 mm

    • Vehicle width incl. exterior mirrors

  • 1.851 mm

    • Vehicle width with folded exterior mirror

  • 2.100 mm

    • Vehicle height

  • 1.851 mm

    • Vehicle width

  • 1.515 mm

    • Track width front

  • 1.515 mm

    • Track width rear

  • 2.850 mm

    • Wheelbase

Power transmission

  • AWD

    • Drive type
  • Automatic 9G-TRONIC

    • Gearbox
  • Low Range

    • Off-road equipment
  • Centre, rear & front differential locks

    • Locks

Bodywork

  • 4

    • Number of seats

  • 5

    • Number of doors

Chassis

  • 265 / 70 R16 112T
    (front & rear)

    • Tyres / Wheels
  • Robust ladder frame incl. 2 rigid axles (front & rear) in combination with coil springs

    • Frame

Weights & Payload

  • 3.500 kg

    • Gross vehicle weight rating [1]
  • 750 kg

    • Maximum trailer load unbraked
  • 3.500 kg

    • Maximum trailer load braked
  • 140 kg

    • Maximum drawbar load
  • 200 kg

    • Maximum roof load [1]

[1] Figures in accordance with Council Directive 92/21/EEC in the currently applicable version (mass in roadworthy condition, fuel tank 90 % full, with driver, 68 kg, and luggage, 7 kg) for vehicles with standard equipment. Optional equipment and accessories usually increase this value, reducing the payload accordingly.

Consumption & Emissions

  • 80 / Optionally 96 L

    • Tank capacity
  • Diesel

    • Fuel type
  • Euro III

    • Exhaust emission standard

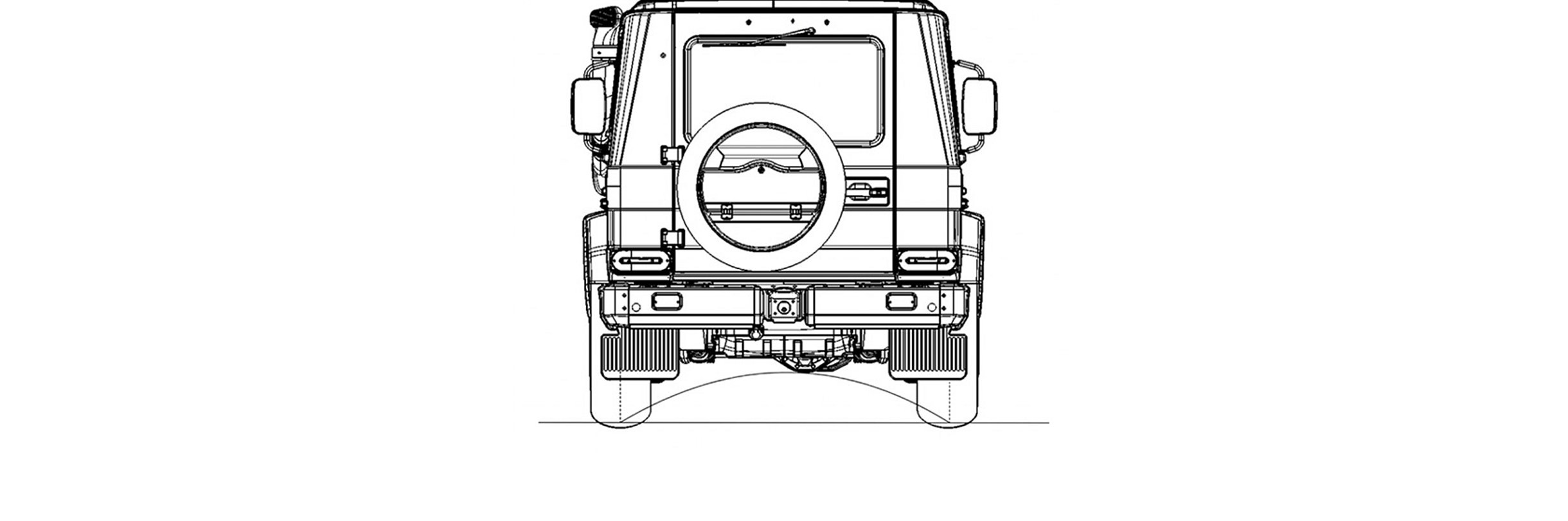

Dimensions.
