G 350 d Chassis Cab.

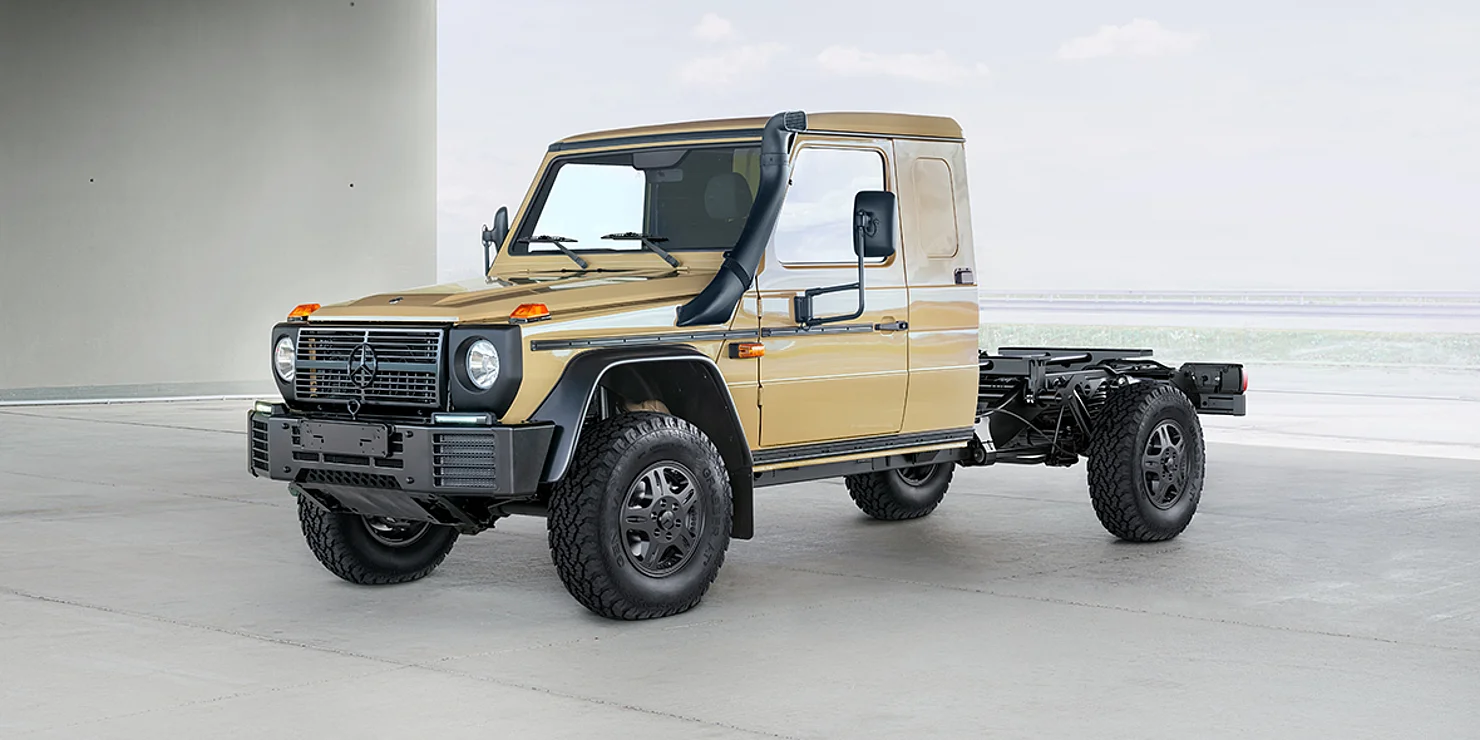

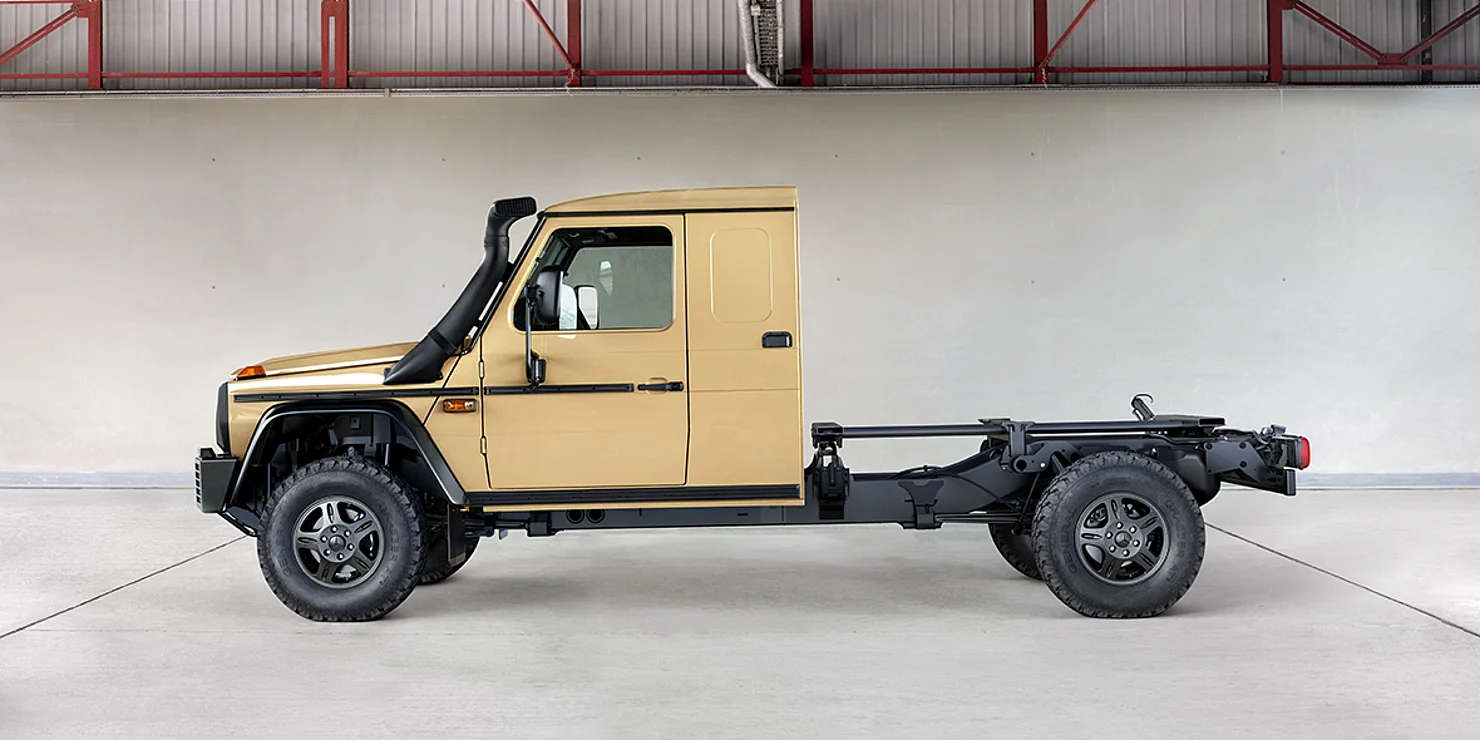

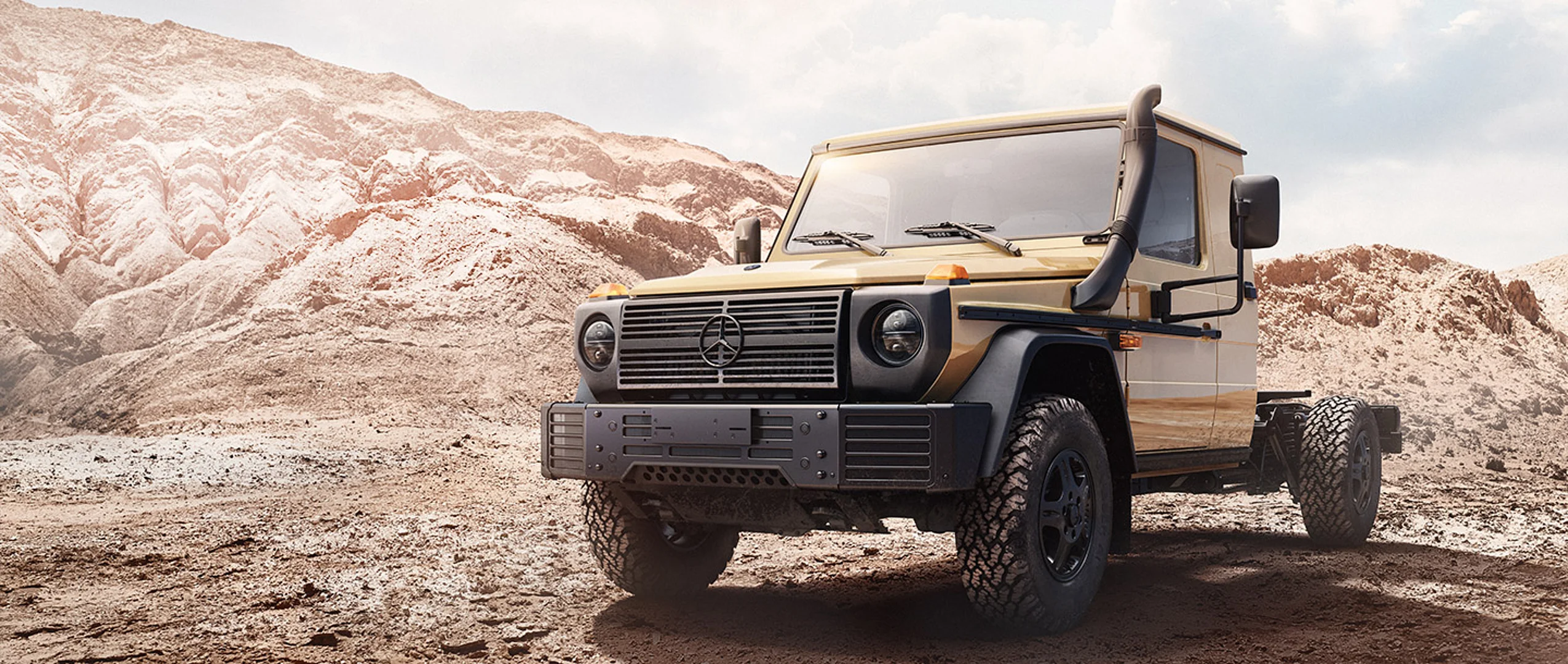

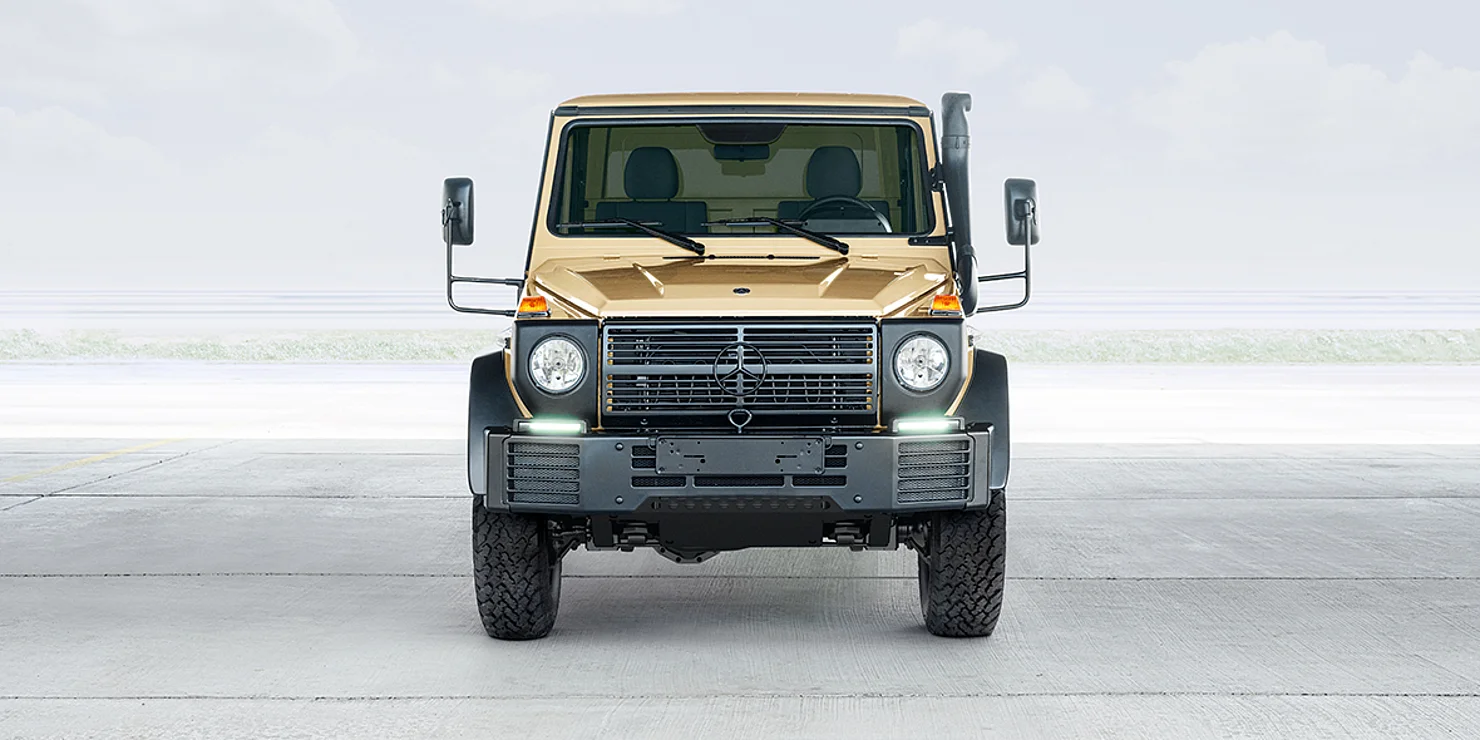

Mercedes-Benz G-Class Chassis with Cab G 350 d.

The chassis with a two-door cab is designed for a two-person team. The new cab is longer than on the previous model. This makes it possible, in combination with the new seating system, to stow luggage and equipment in the cab and to adopt a more comfortable seating position.

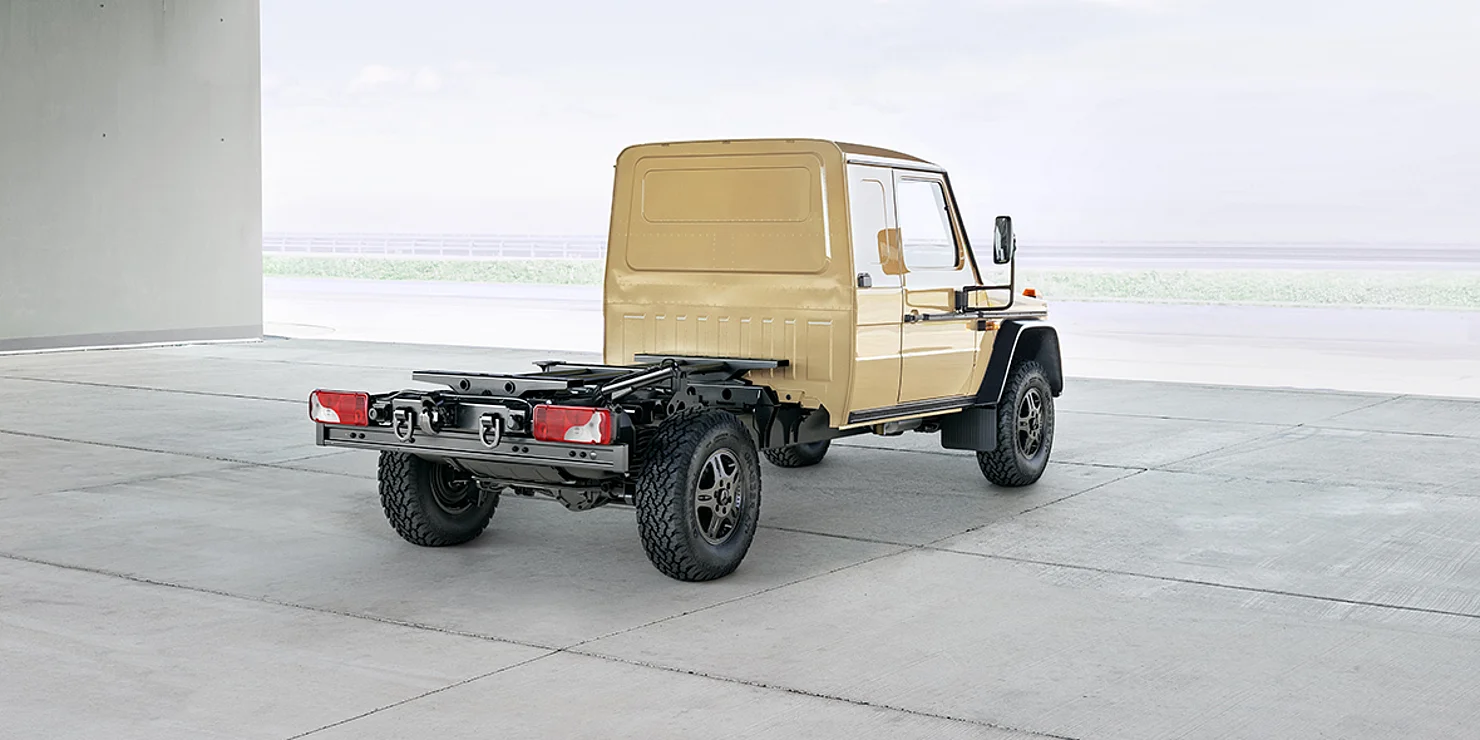

As standard, the vehicle is supplied with a double triangular mounting bracket allowing the largely torsion-free and low-vibration attachment of load carriers. An intermediate frame can be ordered as an option for bodies such as aluminium platforms that can easily twist when being driven off-road.

1/4

The permissible gross weight of 4.9 tonnes allows a payload of 2.5 tonnes. If required, a 3.5-tonne trailer can be towed – as with the Station Wagon. With a fuel tank capacity of 80 litres or 96 litres, ranges of 600 kilometres are easily possible.

Technical data.

Consumption & Emissions

  • 80 / Optionally 96 L

    • Tank capacity / of which reserve

  • Diesel

    • Fuel type

  • Euro III

    • Exhaust emission standard

[*] The stated consumption values were determined on the basis of the UN-R 101 guideline. The measurement was carried out with a vehicle with limited/customised equipment. Software changes introduced later in the lifecycle may cause a change in the determined consumption values.

Motorisation

  • 2.925 ccm

    • Displacement

  • 600 Nm

    • Nominal torque (Nm) [1]

  • 183 kW (249 hp)

    • Nominal power in kW (hp) [1][2]

  • 6 / 4

    • Number of cylinders / number of valves per cylinder

[1] Figures on the nominal power and nominal torque was provided in accordance with Regulation (EEC) No. 715/2007 in the currently applicable version.

[2] Figures on unladen weight data in accordance with Council Directive 92/21/EEC in the currently applicable version (mass in roadworthy condition, fuel tank 90 % full, with driver, 68 kg, and luggage, 7 kg) for vehicles with standard equipment. Optional equipment and accessories usually increase this value, reducing the payload accordingly.

Power

  • 120 km/h /
    Optionally 80 km/h

    • Maximum speed

  • 183 kW (249 hp)

    • Nominal power in kW (hp) [1][2]

[1] Figures on the nominal power and nominal torque was provided in accordance with Regulation (EEC) No. 715/2007 in the currently applicable version.

[2] Figures on unladen weight data in accordance with Council Directive 92/21/EEC in the currently applicable version (mass in roadworthy condition, fuel tank 90 % full, with driver, 68 kg, and luggage, 7 kg) for vehicles with standard equipment. Optional equipment and accessories usually increase this value, reducing the payload accordingly.

Dimensions

  • 5.397 mm

    • Vehicle length

  • 2.430 mm

    • Vehicle width incl. exterior mirrors

  • 1.889 mm

    • Vehicle width with folded exterior mirror

  • 2.107,5 mm

    • Vehicle height

  • 1.889 mm

    • Vehicle width

  • 1.555 mm

    • Track width front

  • 1.595 mm

    • Track width rear

  • 3.650 mm

    • Wheelbase

Power transmission

  • AWD

    • Drive type

  • Automatic 9G-TRONIC

    • Gearbox

  • Low range

    • Off-road equipment

  • Centre, rear & front differential locks

    • Locks

Bodywork

  • 2

    • Number of seats

  • 2

    • Number of doors

Chassis

  • 265 / 75 R16 121R (front & rear)

    • Tyres / Wheels

  • Robust ladder frame incl. 2 rigid axles (front & rear) in combination with coil springs

    • Frame

Weights & Payload

  • 4.900 kg

    • Gross vehicle weight rating [1]

  • 750 kg

    • Maximum trailer load unbraked

  • 3.500 kg

    • Maximum trailer load braked

  • 140 kg

    • Maximum drawbar load

  • 150 kg

    • Maximum roof load [1]

[1] Figures in accordance with Council Directive 92/21/EEC in the currently applicable version (mass in roadworthy condition, fuel tank 90 % full, with driver, 68 kg, and luggage, 7 kg) for vehicles with standard equipment. Optional equipment and accessories usually increase this value, reducing the payload accordingly.

Dimensions.
